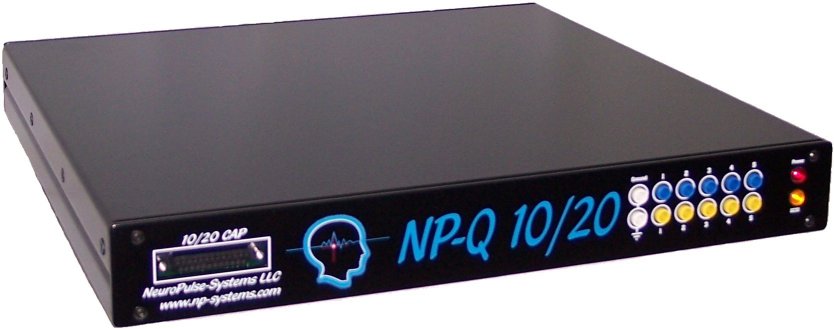

NP-Q 10/20
 |
 |
The NP-Q 10/20 represents the next
generation of Mindset Technology.
The NP-Q 10/20 is elegant, sleeker and
more powerful then ever.
The NP-Q 10/20 combines the power of
Mindset Technology and NeuroGuide’s
accuracy into one handsome package.
The NP-Q 10/20 provides quick connect
for QEEG acquisition without the need of
cumbersome adapters and has five additional
channels for custom EEG applications or
Biofeedback.
The NP-Q 10/20 is part of the most
affordable, cleanest signal, QEEG capable
family of amplifiers available.
Channels
QEEG specific: 19 Channels w/ Linked Ears Quick Connection
port (25 pin Cap Receptacle)
5 Differential Input Channels for EEG/Biofeeback
Resolution
16 bit analog to digital converter
64, 128, 256 or 512 samples/second/channel
Amplifiers
- Gain: 36,000 (91 dB), typical
- Pass band: 1.4 Hz - 35 Hz (-3 dB)
- Two 4th-order Sallen-Key active filters, 48 dB/octave roll-off
- CMRR: 120 dB maximum, 100 dB typical 60 Hz rejection
- Noise: <300 nan-volts (RMS), inputs shorted
Input Range
0 - 120 microvolts
Electrodes
QEEG Quick Connect Port (25 pin Cap Receptacle)
5 Standard electrode inputs (1.5 mm touch-proof)
Montage Reference Configuration
Standard 10-20 configuration in Channels 1– 19
Interface to Host Computer
SCSI (Standard Centronics 50 pin connectors)
Compatible with desktop/laptop computers with adaptors
(SCSI adaptors (interface card) are sold separately)
Opto-Isolation
2500 volts RMS
Total Harmonic Distortion
-87dB
99.9% linearity in the opto-isolators
Calibration
Factory calibrated
Optional calibration certificate available
Optional calibration hardware available
Power
110/220 volts, 50/60 Hz input
15 watts power consumption
Operational Temperature
32 to 90 degrees F.
Dimensions and Weight
15 inches deep, 15.5 inches wide, 2.13 inches high
Main unit: 7.25 pounds External power supply: 2 pounds
Warranty
The NP-Q 10/20 is warranted to be free of defects which affect
proper operation for a period of one year.
Optional Accessories
QEEG Compatible Cap, Calibration Certificate, Calibration
Hardware, SCSI Interface Cards and more…
$US4999.95
|
NP-Q 10/20 NZ6950.00 |
